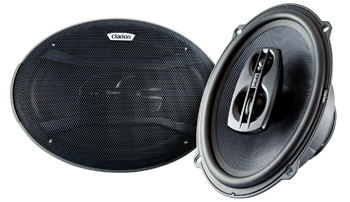

  6" x 9" 3-Way Coaxial Speaker

SUPERIOR ACOUSTIC PERFORMANCE FOR TODAY's CARS.

amplifierSRD6900R

Speaker performance has a direct and undeniable effect on the sound you ultimately hear. Clarion HX-Series speakers offers a broad selection, so you can choose the type of design, power handling capabilities and acoustic characteristics that best suits your taste and automobile.



- 130W RMS of true power
- High sensitivity for maximum SPL
- Long excursion suspension and oversized magnet for clean and deep bass
- 28mm high-mid and 20mm soft dome Neodymium magnet super-tweeter for
  maximum clarity and fidelity



FEATURES & SPECIFICATIONS
Reproduction system
3-way coaxial
Woofer: Damped Mesh Fiber woofer with high density flux ferrite magnet (inches)
6" x 9"
Tweeter: Tetolon Fiber® dome tweeter with Neodymium magnet (mm)
28
Super Tweeter diameter (mm) 20
Sensitivity @ 1W/1M (dBSPL)
94
Music Peak Power (W)
260
Continuous Power (W)
130
Crossover cut-off frequency (Hz)
4,000/10,000 (6 dB/Oct.)
Frequency response (Hz) 32 ~ 23,000
