Clarion HX-Series CD Recever, Amplifiers & Speakers

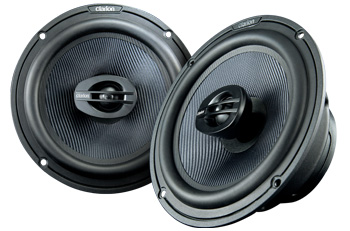

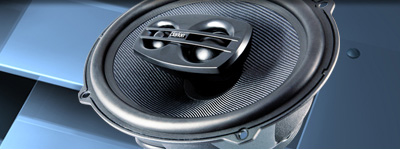

6.5" 2-Way Coaxial Speaker

SUPERIOR ACOUSTIC PERFORMANCE FOR TODAY's CARS.

amplifier SRD1700R

Speaker performance has a direct and undeniable effect on the sound you ultimately hear. Clarion HX-Series speakers offers a broad selection, so you can choose the type of design, power handling capabilities and acoustic characteristics that best suits your taste and automobile.

	- 100W RMS of true power - High sensitivity for maximum SPL - Long excursion suspension and oversized magnet for clean and deep bass - 20mm soft dome and Neodymium magnet tweeter for clarity and fidelity - Adjustable tweeter inclination for perfect smooth frequency response

FEATURES & SPECIFICATIONS
Reproduction system	2-way coaxial
Woofer: Damped Mesh Fiber woofer with high density flux ferrite magnet (mm)	165
Tweeter: Tetolon Fiber® dome tweeter with Neodymium magnet (mm)	20
Sensitivity dBSPL	92
Music Peak Power (W)	200
Continuous Power (W)	100
Crossover cut-off frequency (Hz)	4,000 (6 dB/Oct.)
Frequency response (Hz)	50 ~ 22,000
